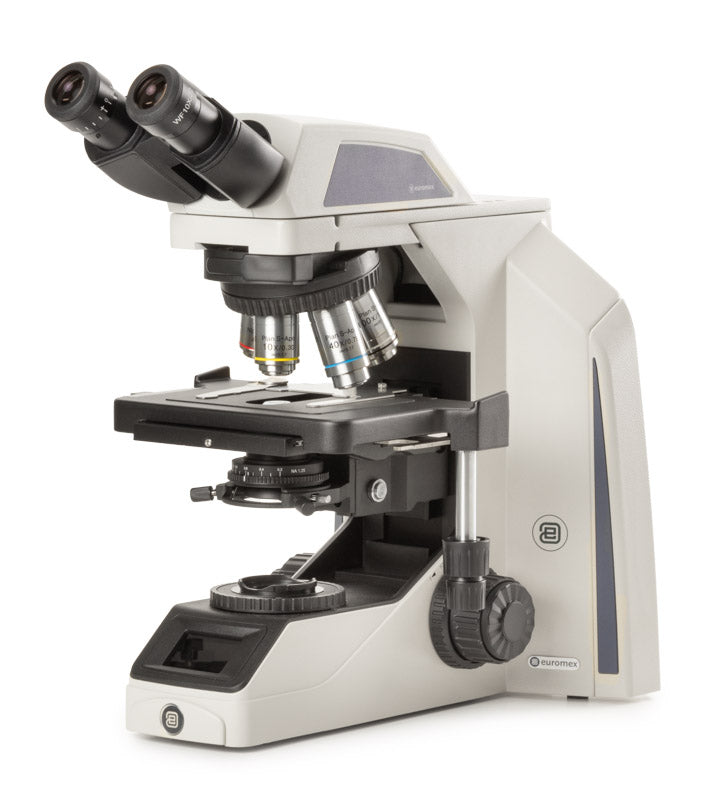

Binocular Microscope Achios-X Observer AX.1152-APLi

Achios-X Observer

The Achios-X Observer is Euromex's laboratory range for life sciences, with a Siedentopf head, 1 µm focusing precision and illumination that remembers the intensity for each objective. The AX.1152-APLi steps up image quality with 4x, 10x, S40x and S100x oil immersion plan semi-apochromatic objectives, a very complete option for cytology and pathology.

Technical specifications

• EWF 10x/22 mm eyepieces
• Siedentopf binocular head inclined at 30°, interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Inverted quintuple nosepiece on ball bearings
• APLi plan semi-apochromatic objectives 4x/0.13, 10x/0.30, S40x/0.75 and S100x/1.4 oil immersion, EIS 60 mm parfocal
• All optics with anti-fungus and anti-reflection coating for maximum light transmission
• Rackless stage of 238 x 155 mm with integrated mechanical stage of 79 x 55 mm
• Abbe condenser with height adjustment
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and approximate travel of 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• 3 W NeoLED Köhler transmitted illumination, dimmable, with external power supply of 100-240 Vac / 5 Vdc 2 A (CE)
• Smart Light Control (SLC): stores the intensity for each objective, colour temperature adjustable from 3,200 to 7,000 K, LCD screen showing magnification and intensity, lock and switch-off timer to save energy
• CSS system for storing the cable and power supply
• Includes mains cable, spare fuse of 500 mA 250 V, 5 ml of immersion oil and dust cover, in a polystyrene box
