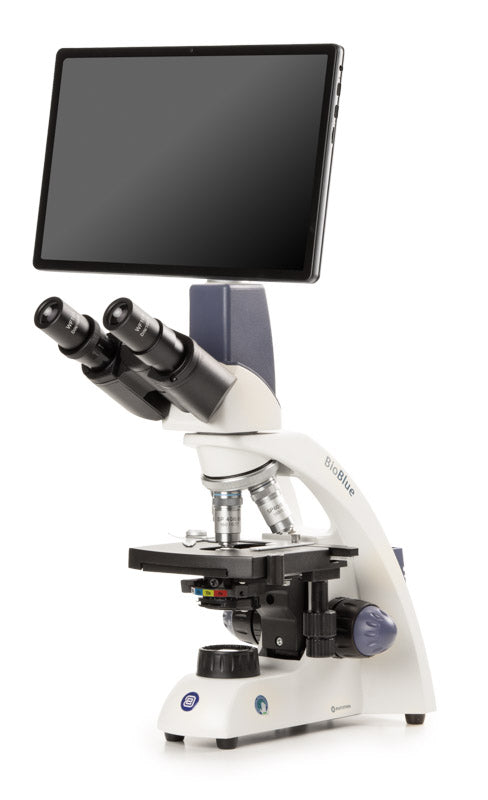

BioBlue BB.4269-T Binocular Microscope
SKU
BB.4269-T
- Regular price
- € 1.782,33
Excl. VAT: €1.473,00
- Regular price
- € 1.782,33
Excl. VAT: €1.473,00
- Free shipping in the EU4-10 working days
- Secure paymentCard, PayPal, Klarna or bank transfer
- 15-day returnsWith prior authorisation
School, university or company?
Request a quote: choose the quote option at checkout, or write to us.
hola@letscopes.com · +34 93 715 21 18
BioBlue
The BioBlue BB.4269-T is a binocular microscope from Euromex designed for teaching, with a built-in 5 MP CMOS camera and a 10-inch Windows tablet, so you can view and share the image on screen without any additional equipment. It is fitted with 4x, 10x, S40x and S63x semi-plan objectives, an Abbe condenser with iris diaphragm and 1 W two-colour LED illumination that can run cordless thanks to its rechargeable batteries. A very complete option for its value for money, suited to classrooms and teaching laboratories.
Technical specifications
- WF 10x/18 mm eyepieces
- Siedentopf binocular head, inclined at 30° and rotatable through 360°
- Integrated 5 MP CMOS camera with USB 2 interface, 2560 x 1920 pixels, and attached 10-inch Windows tablet
- Inverted quadruple nosepiece on ball bearings
- 4x, 10x, S40x and S63x semi-plan objectives
- All optics with anti-fungus and anti-reflection coating for maximum light transmission
- Coaxial coarse and fine focusing with 200 divisions: 2 µm precision, 0.4 mm per revolution, travel of approx. 23 mm and friction adjustment
- 130 x 130 mm stage with 70 x 28 mm mechanical stage
- Abbe condenser N.A. 1.25, height adjustable, with iris diaphragm and filter holder
- 1 W two-colour LED illumination with external USB-C power supply, 5 V DC, and multi-plug adapter, 100-240 V AC (CE, 50/60 Hz)
- Cordless use with 3 rechargeable NiMH AA batteries
- Second external power supply for the tablet
- Paint finish with antibacterial protective coating
- Includes power cable, dust cover and 5 ml of immersion oil in a polystyrene case
