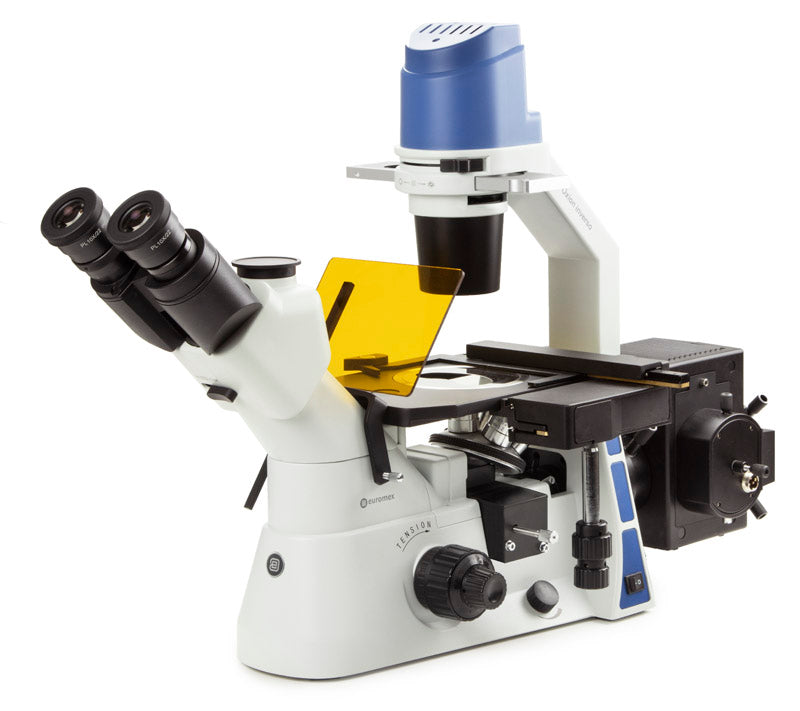

Oxion Inverso OX.2453-PLF Trinocular Inverted Microscope

Oxion Inverso (and fluorescence)

The Oxion Inverso is the Euromex inverted-stage microscope for life sciences, designed for observing living organisms and tissue cultures in culture plates and flasks. The OX.2453-PLF is the trinocular fluorescence version: it combines a 100 W mercury vapour lamp with 5 W NeoLED brightfield, Plan Fluarex PL IOS 10x, 20x and S40x objectives, and a slider for three filter blocks plus a brightfield position. It is supplied with a carrying case.

Technical specifications

• Pair of HWF 10x/22 mm eyepieces
• Trinocular head with 45° inclined tubes, which can be set in a high or low position
• Interpupillary distance from 54 to 75 mm and dioptre adjustment on the left eyepiece
• Inverted quintuple nosepiece on ball bearings
• Plan Fluarex PL IOS 10x, 20x and S40x objectives
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• 250 x 230 mm stage with 120 x 78 mm mechanical stage
• Includes a glass insert with 30 mm hole, a metal insert with 25 mm hole, a metal insert for 35 mm Petri dish holders, a holder for 76 x 26 mm slides with 54 mm Petri dish holder, and a multiwell plate holder with 65 mm Petri dish holder
• Coaxial coarse and fine focusing: 2 µm precision, 0.2 mm per turn and a total travel of about 25 mm
• NA 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
• Fluorescence with a 100 W mercury vapour lamp and 5 W NeoLED brightfield transmitted illumination, internal 100-240 V (CE) power supply and UV protection shield
• Slider for 3 filter blocks and a brightfield position
• Includes 3 standard filter blocks: blue (EX465-495 DM505LP EM515-558), green (EX520-580 DM600LP EM605-665) and UV1 (EX361-381 D415LP EM435-495)
• Includes power cable and carrying case
